+ALLIMANN

SWISS RADIATION MEASUREMENT

Precision instruments for radiation detection.

Compact dosimetry, smart USB probes and integrated measurement software — designed and manufactured in Switzerland.

Discover our products dosimeter@allimann.com
SA-05G radiation survey meter
+Designed & manufactured in Switzerland

INSTRUMENTS

Focused radiation measurement solutions

Two complementary instruments, from portable ambient gamma monitoring to a rugged alpha-beta-gamma USB probe.

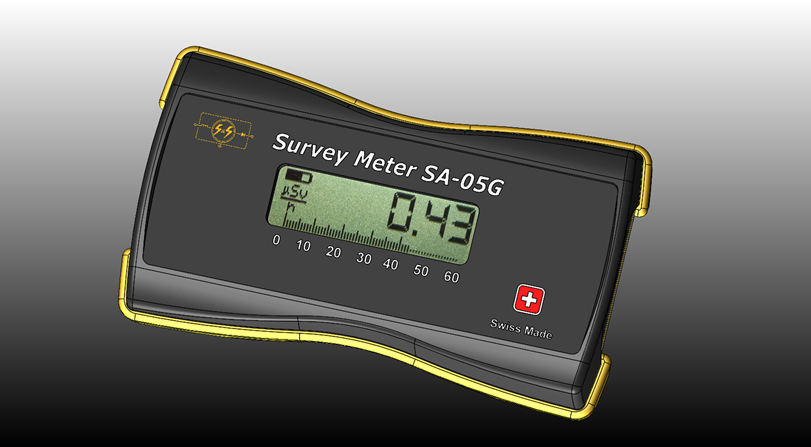

SA-05G

SA-05G

Portable gamma survey meter & dosimeter

A compact, button-free instrument for H*(10) ambient gamma dose-rate measurement and area monitoring, with automatic self-diagnostics, internal logging and USB connectivity.

0–6000 µSv/hdose-rate range
LND 713Geiger-Müller detector
16,352internal records
80 hbattery autonomy
Technical highlights
  • IP51 — 119 × 65 × 26.5 mm — 135 g
  • Energy response: 50 keV to 1.3 MeV
  • Slow mode 0–5 µSv/h / 60 s; fast mode 5.01–6000 µSv/h / 1 s
  • USB monitoring, configuration, data management and charging
  • CE · FCC-15 · RoHS

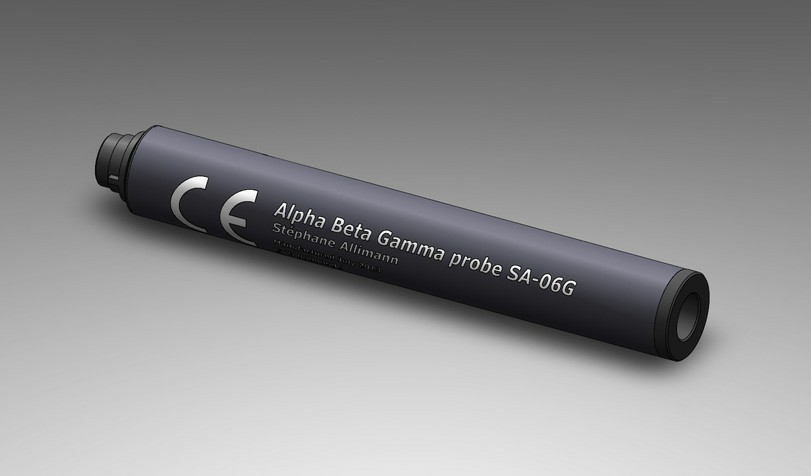

SA-06G

SA-06G

Alpha-beta-gamma smart USB probe

A fully integrated probe for nuclear, medical, emergency and laboratory applications. Measurement electronics, calibration, parameters, probe ID and data storage are embedded directly in the probe.

0–50,000 µSv/hdose-rate range
LND 712Geiger-Müller detector
IP67protection rating
USBhost interface
Technical highlights
  • Ø 28 × 200 mm — 140 g — aluminium housing
  • Alpha-beta-gamma detector, energy response 50 keV to 4 MeV
  • Slow mode 0–5 µSv/h / 60 s; fast mode 5.01–50,000 µSv/h / 1 s
  • 16,352-record non-volatile memory and 8-point Cs-137 calibration table
  • CE · FCC-15 · RoHS

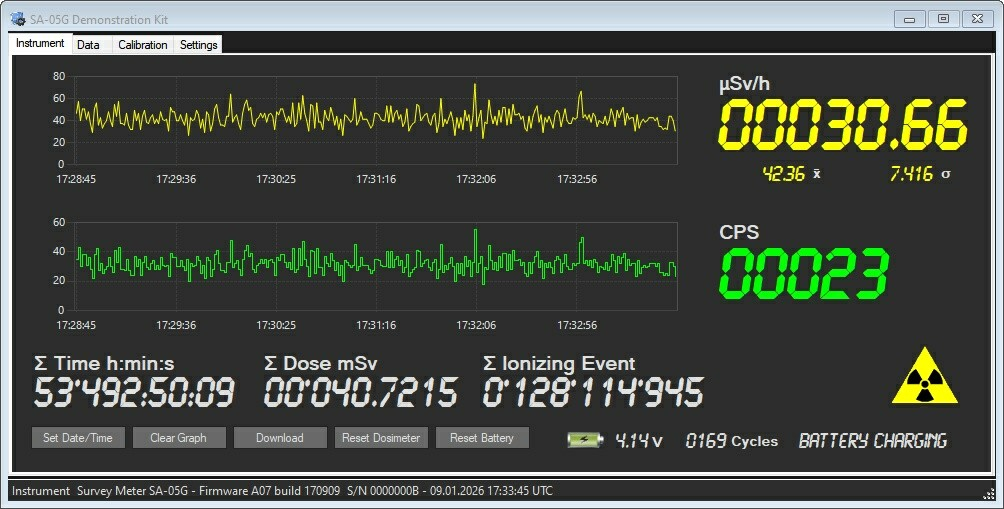

DosiLog software instrument view

DOSILOG

One environment for measurement, configuration and data management.

DosiLog connects Geiger-Müller survey meters and probes, displays instant dose rate and CPS, records data in a SQL database, manages instrument parameters and provides access to archived measurements.

Live measurementSQL archiving CalibrationData analysis Up to 4 instrumentsWindows 7–11

DosiLog Laboratory Edition adds production and service calibration functions.

COMPANY

Swiss engineering since 2011.

Founded in 2011 as a Swiss start-up, Allimann develops and manufactures radiation measurement instruments, including dosimeters and scintillation detectors. Our approach combines compact electronics, embedded intelligence and practical field use.

Designed in Switzerland. Manufactured in Switzerland.

CONTACT

Discuss your radiation measurement application.

Main contact dosimeter@allimann.com

www.allimann.com
